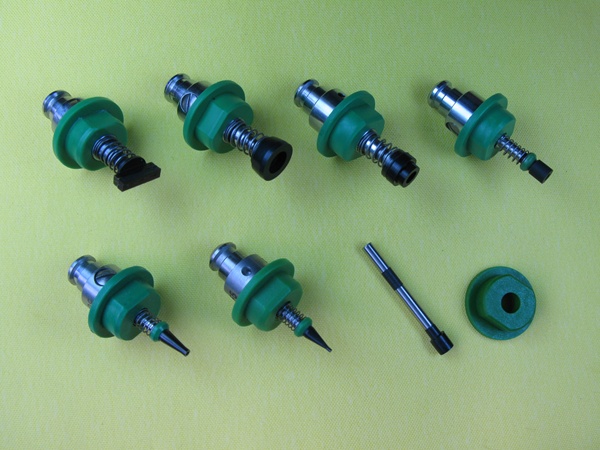

JUKI | FX1/3 , KE2050~KE2080
본문
| PART NO. | PART NAME | SIZE | REMARKS |
| E3608-729-0A0 | #500 ASS'Y | 1.0mm/0.5mm(2-HOLES) | |
| E3600-729-0A0 | #501 ASS'Y | 0.4mm/0.7mm(0.25HOLE) | |
E3601-729-0A0 | #502 ASS'Y | φ0.7/φ0.35 |
|
E3602-729-0A0 | #503 ASS'Y | φ1.0/φ0.6 |
|
E3603-729-0A0 | #504 ASS'Y | φ1.5/φ1.0 |
|
E3604-729-0A0 | #505 ASS'Y | φ3.5/φ1.7 | PAD TYPE |
E3605-729-0A0 | #506 ASS'Y | φ5.0/φ3.2 | PAD TYPE |
| E3606-729-0A0 | #507 ASS'Y | φ8.5/φ5.0 | PAD TYPE |
| E3607-729-0A0 | #508 ASS'Y | φ9.5/φ8.0 | PAD TYPE |
| #500 TIP | 1.0mm/0.5mm(2-HOLES) | ||
| #501 TIP | 0.4mm/0.7mm(0.25HOLE) | ||
| #502 TIP | φ0.7/φ0.35 | ||
| #503 TIP | φ1.0/φ0.6 | ||
| #504 TIP | φ1.5/φ1.0 | ||
| #505 TIP | φ3.5/φ1.7 | PAD TYPE | |
| #506 TIP | φ5.0/φ3.2 | PAD TYPE | |
| #507 TIP | φ8.5/φ5.0 | PAD TYPE | |
| #508 TIP | φ9.5/φ8.0 | PAD TYPE | |
| #505 PAD | φ3.5/φ1.7 | ||
| #506 PAD | φ5.0/φ3.2 | ||
| #507 PAD | φ8.5/φ5.0 | ||
| #508 PAD | φ9.5/φ8.0 | ||
| CHUCK NOZZLE | CHIP SIZE LARGE | ||
| CHUCK NOZZLE | CHIP SIZE SMALL | ||
| SPECIAL | CNT TIP | DATA for ON |
